Top Tooling Selection

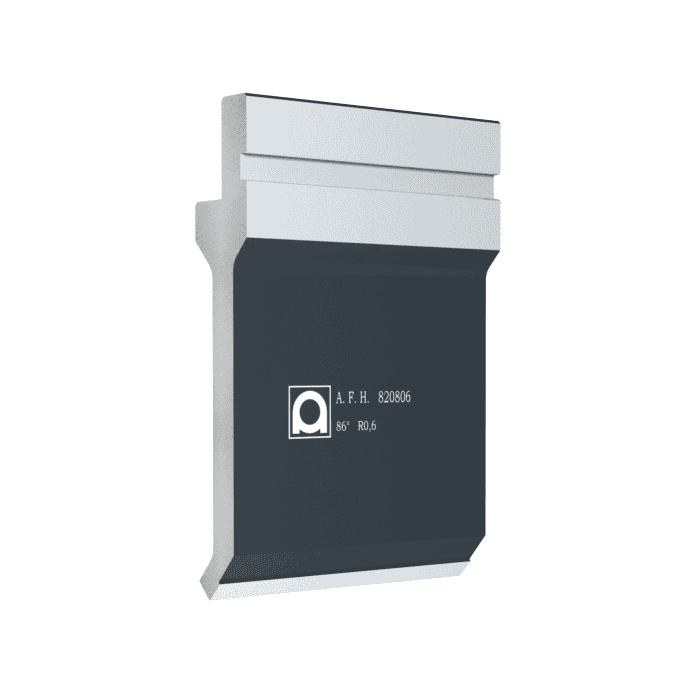

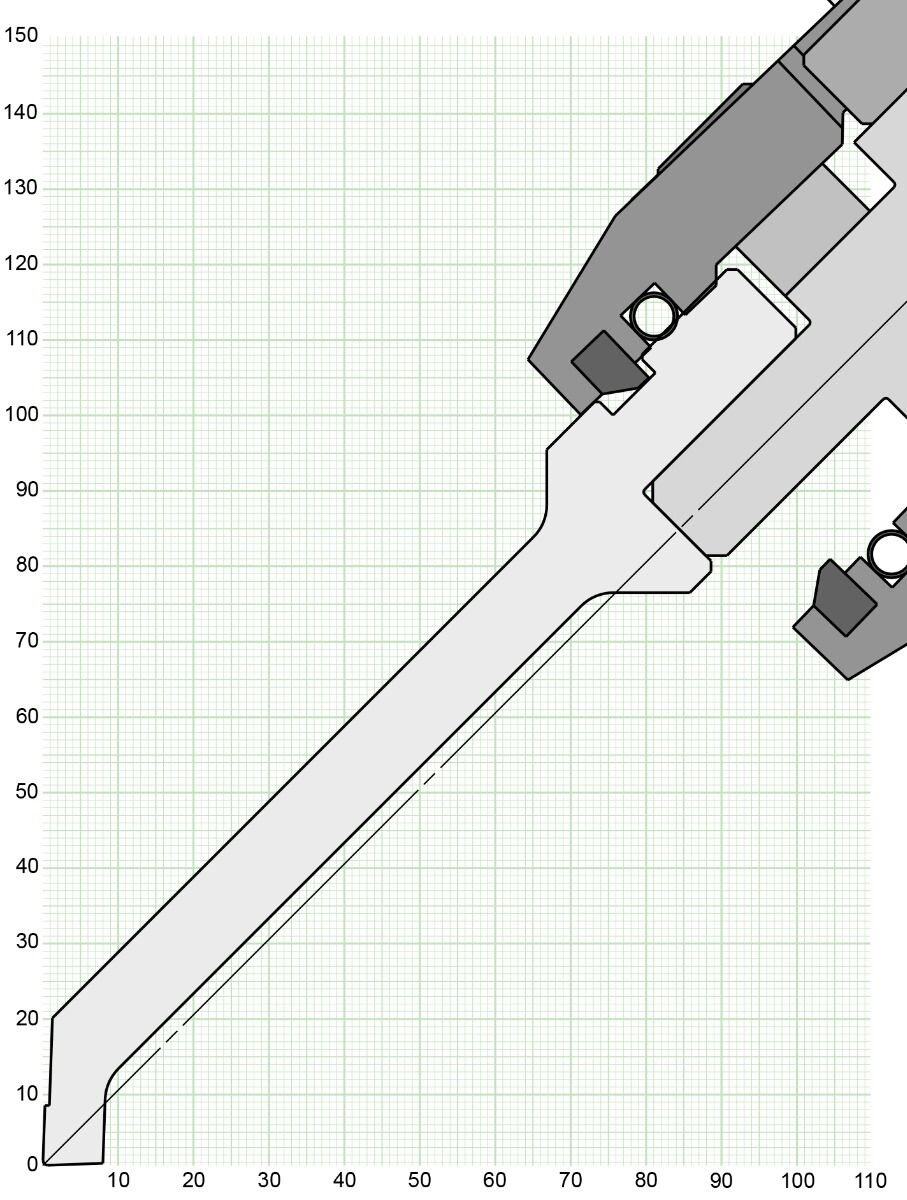

820 H120 86°
- Max Length: 3000mm
- MaxTonnage: 100t/m

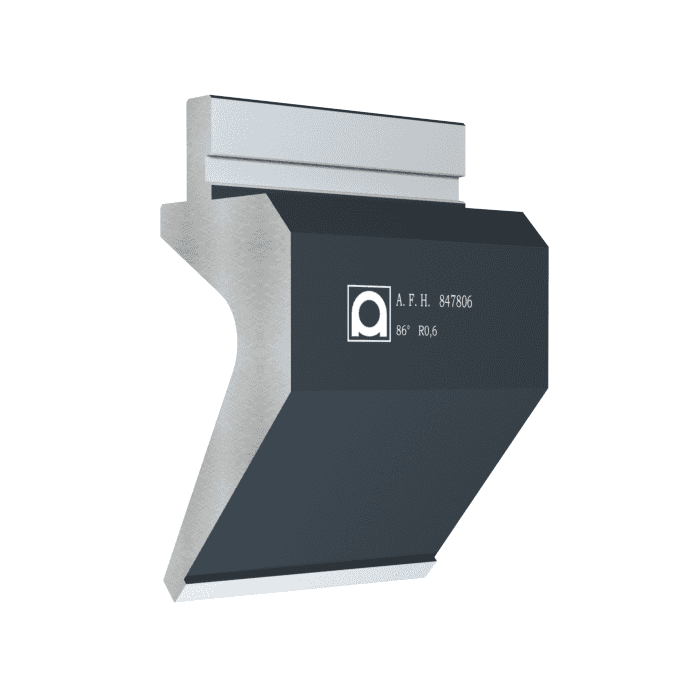

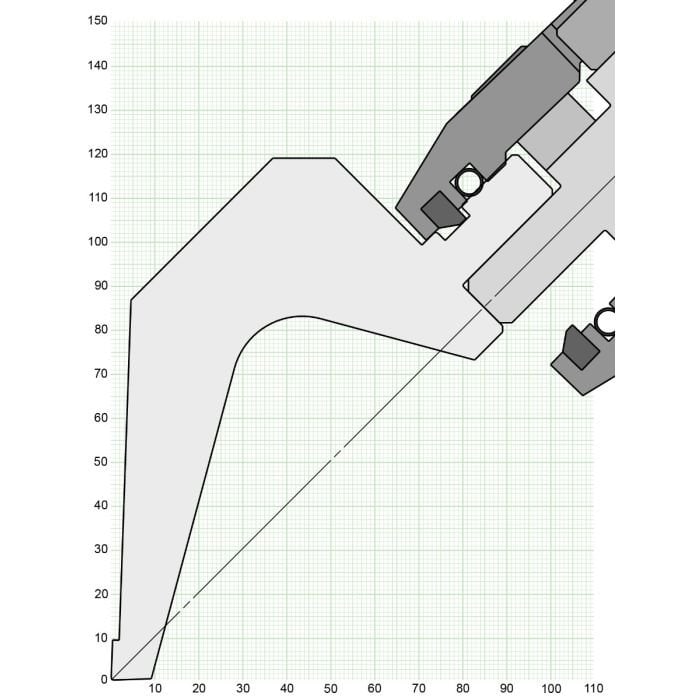

847 H120 86°
- Max Length: 3000mm
- MaxTonnage: 100t/m

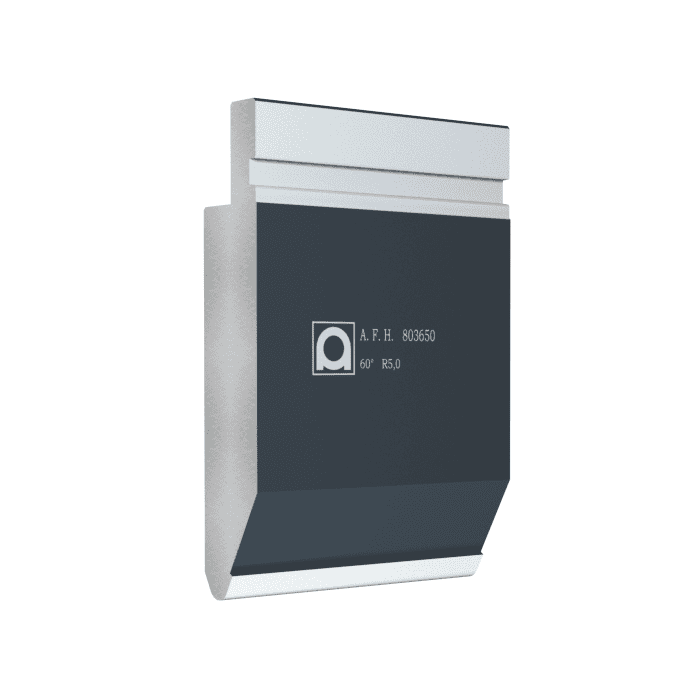

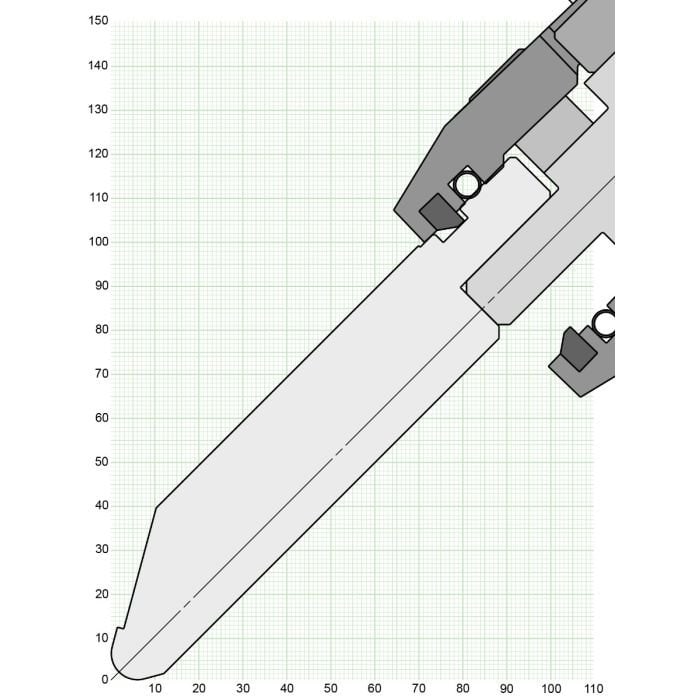

803 H120 86
- Max Length: 2500mm
- MaxTonnage: 100t/m

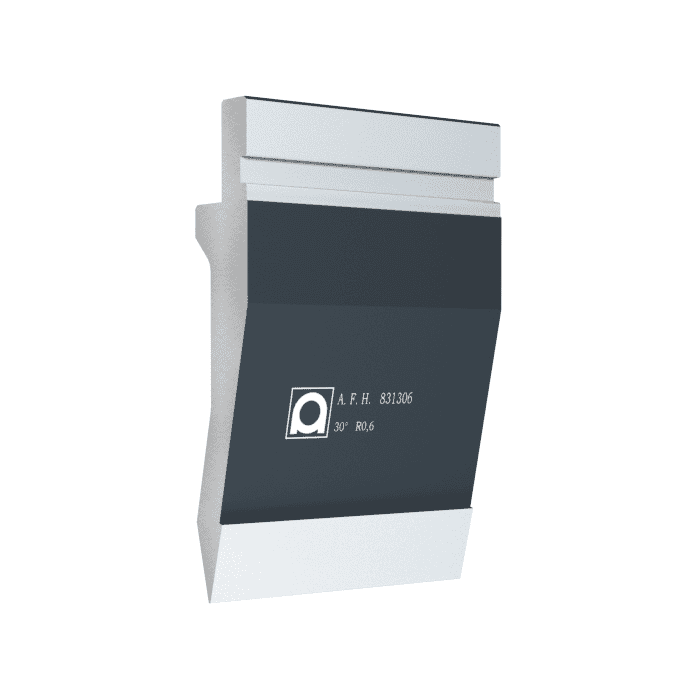

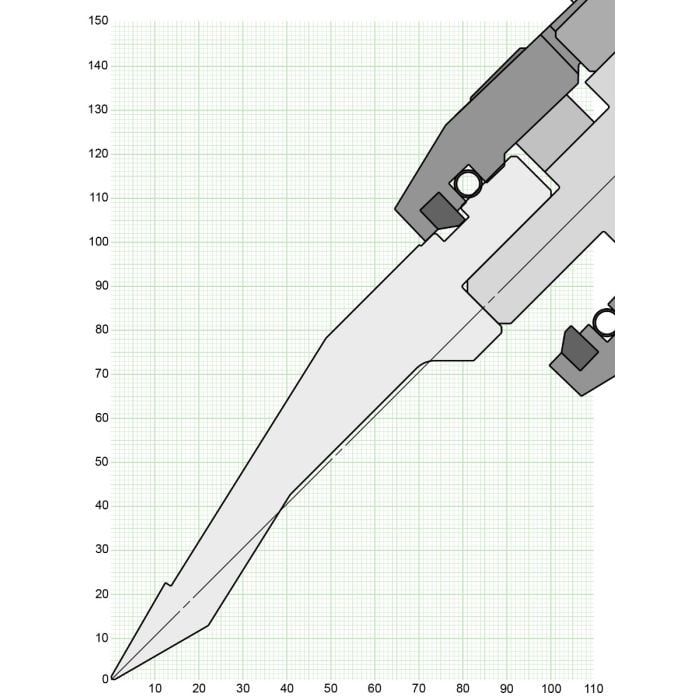

831 H120 30°
- Max Length: 3000mm
- MaxTonnage: 100t/m

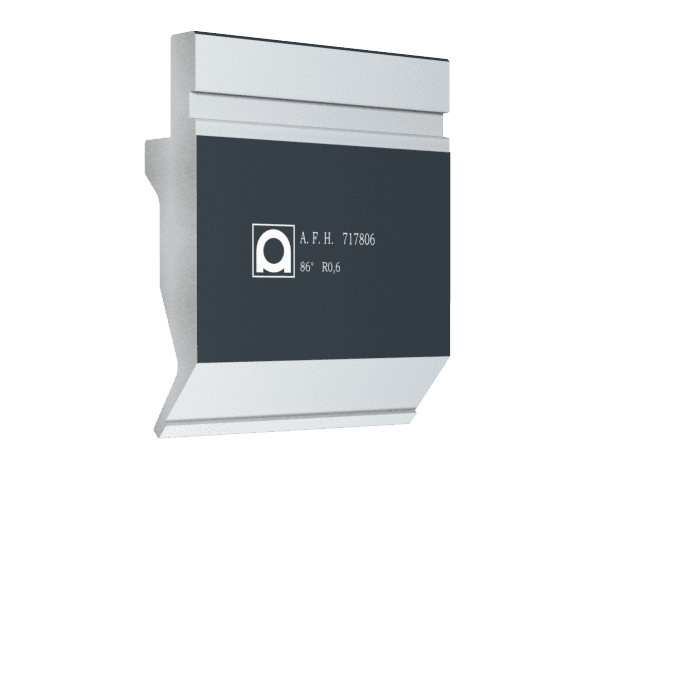

717 H90 86°
- Max Length: 835mm
- MaxTonnage: 25t/m

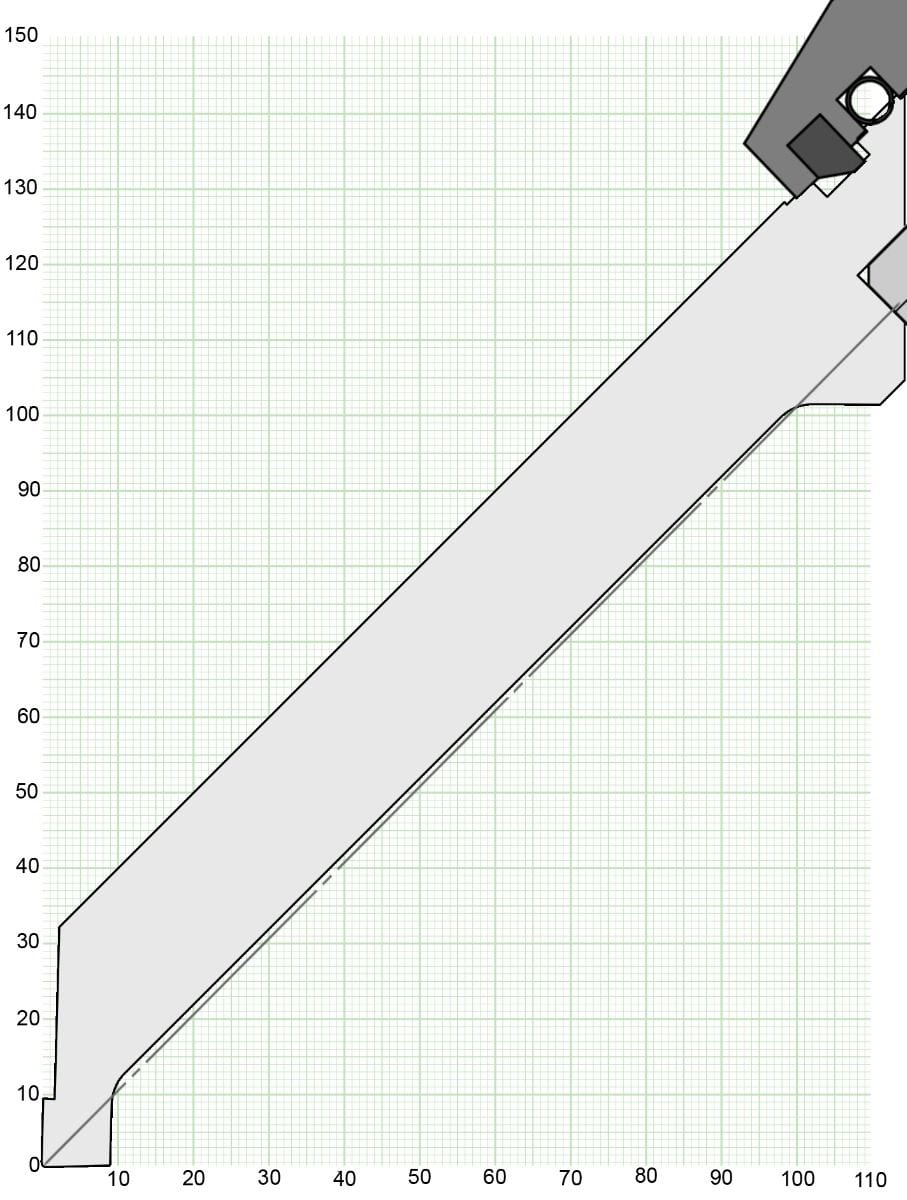

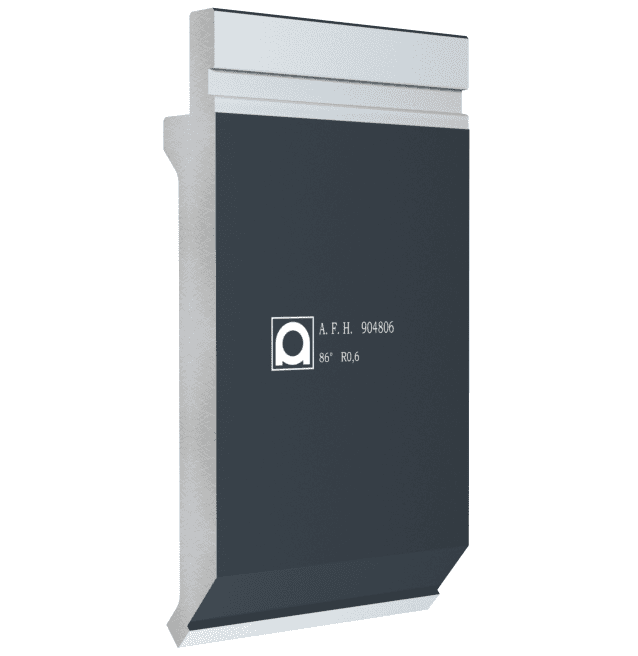

904 H160 86°
- Max Length: 1670mm
- MaxTonnage: 100t/m

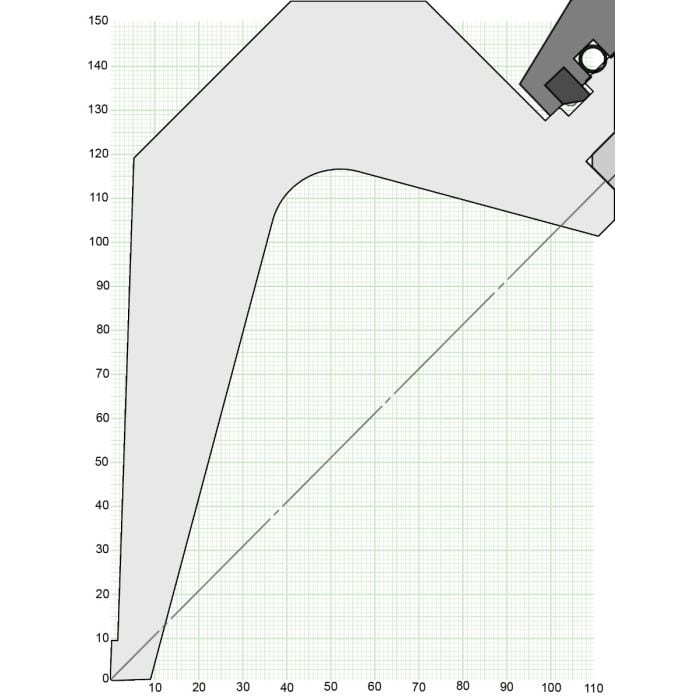

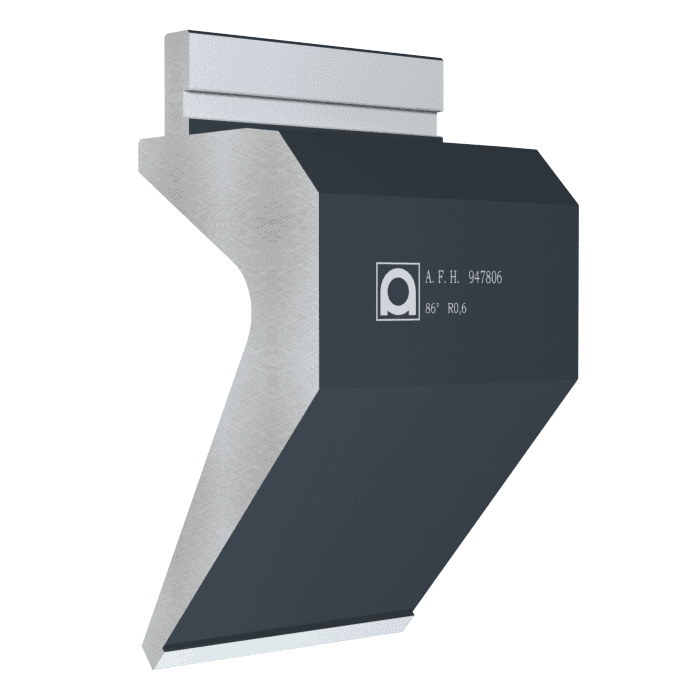

947 H160 88°
- Max Length: 415mm
- MaxTonnage: 50t/m

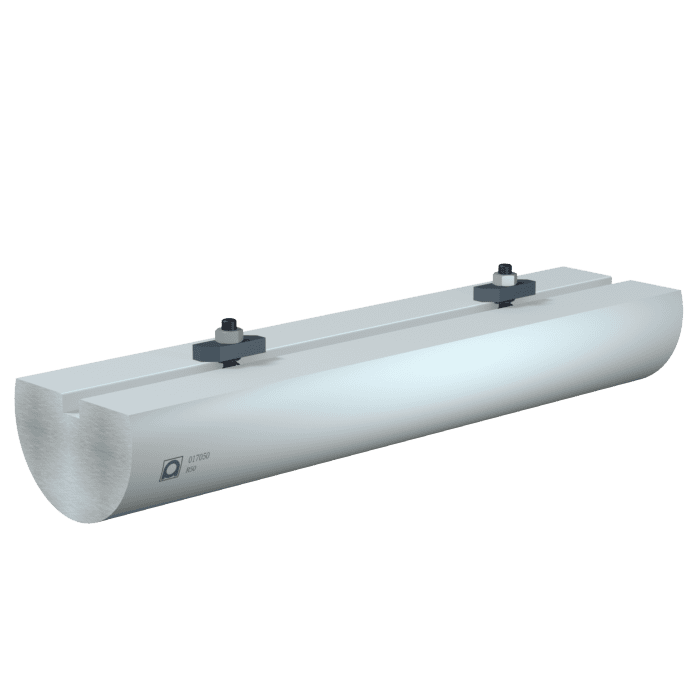

Radius Punches
6mm, 10mm, 15mm, 20mm, 35mm, 40mm, 50mm
Bottom Tooling Selection

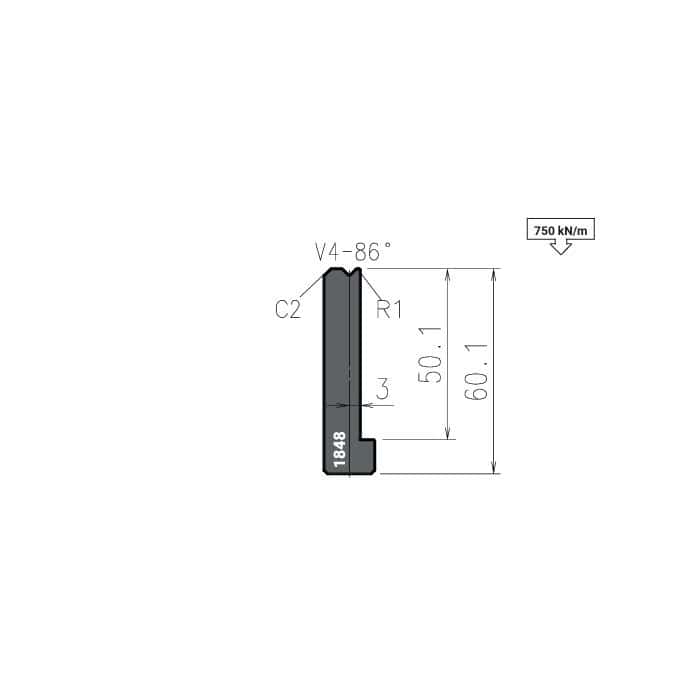

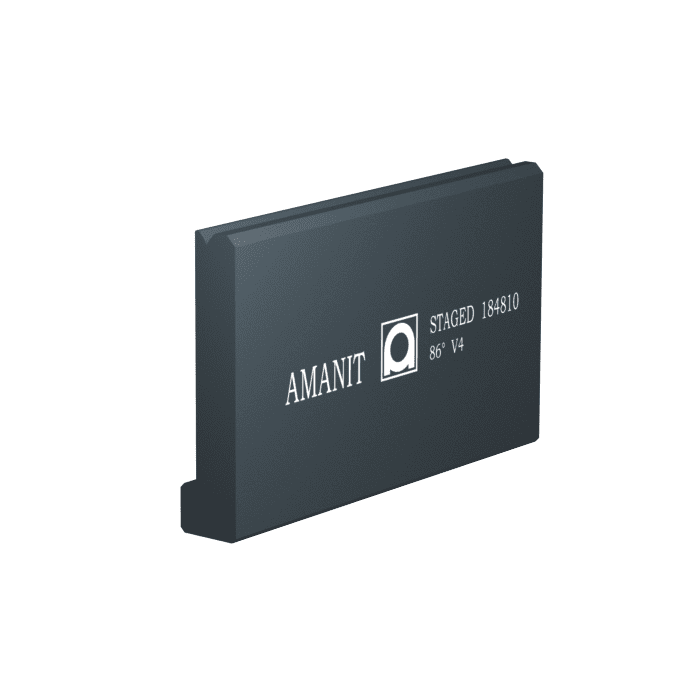

V4 86°
- Max Length: 3000mm
- MaxTonnage: 75t/m

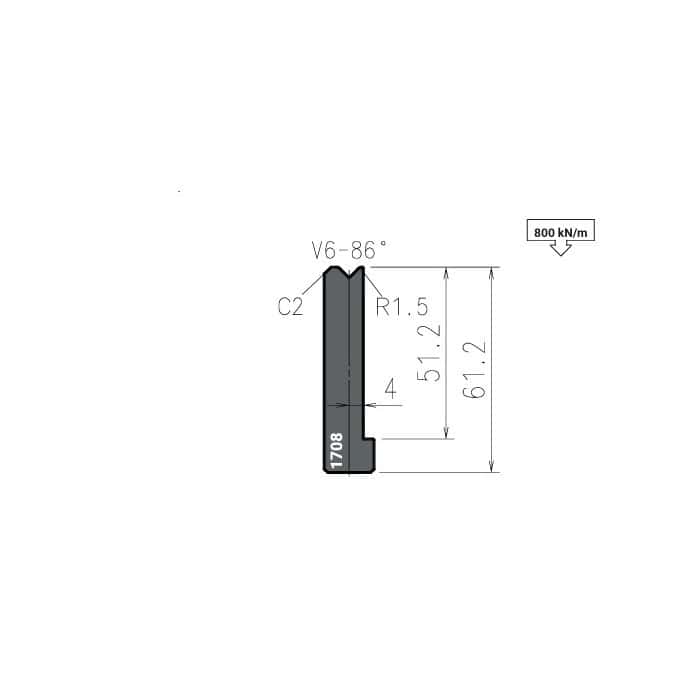

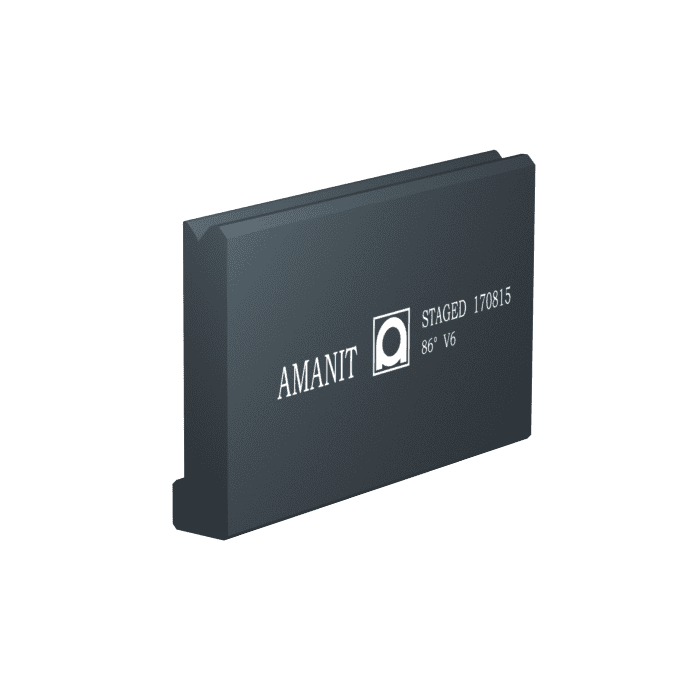

V6 86°
- Max Length: 3000mm
- MaxTonnage: 80t/m

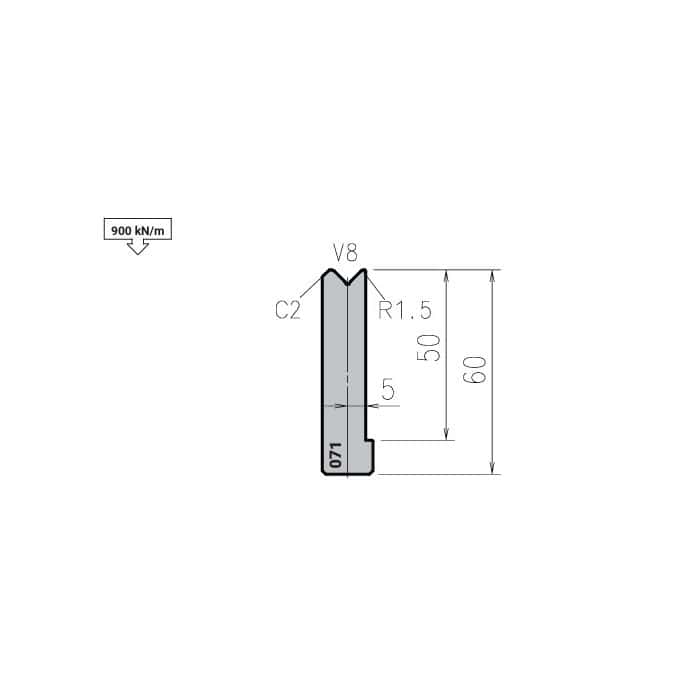

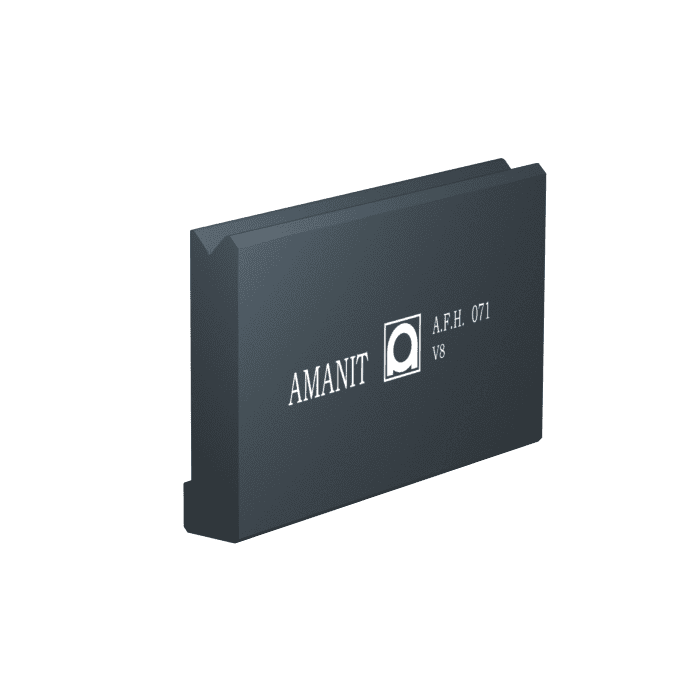

V8 88°
- Max Length: 3000mm
- MaxTonnage: 90t/m

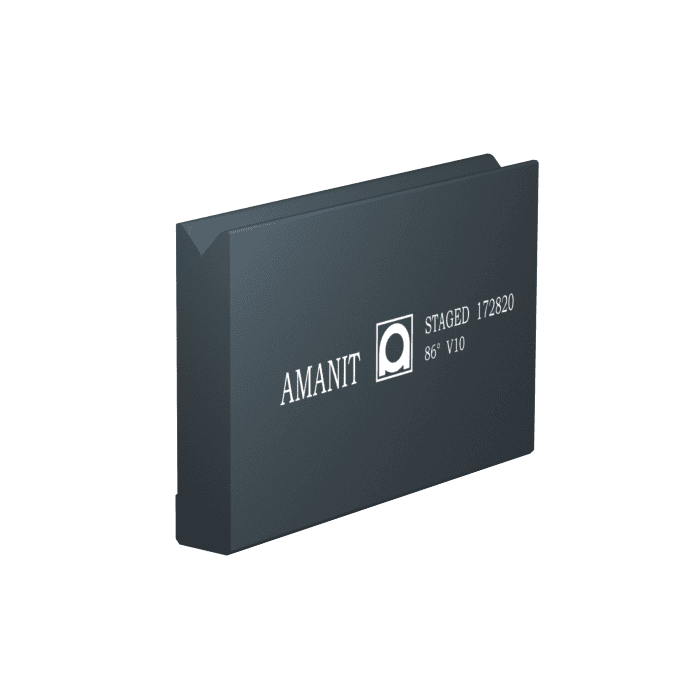

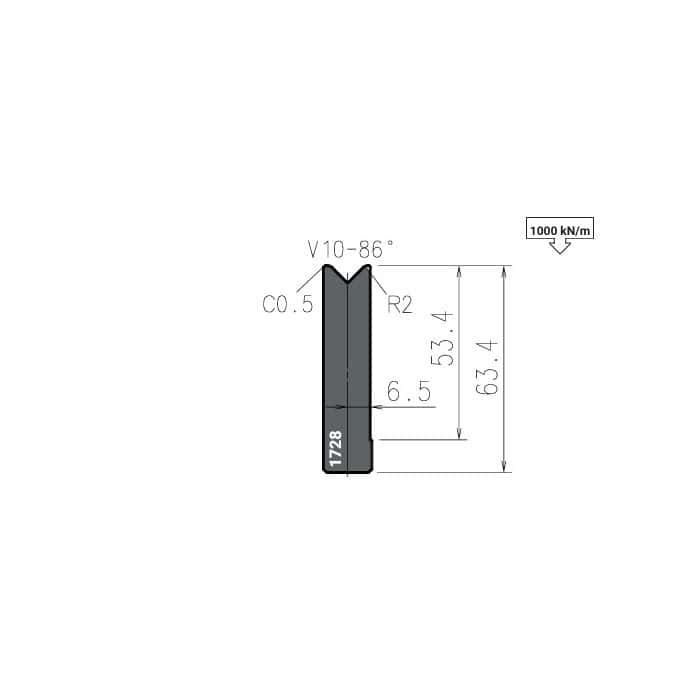

V10 88°
- Max Length: 3000mm
- MaxTonnage: 100t/m

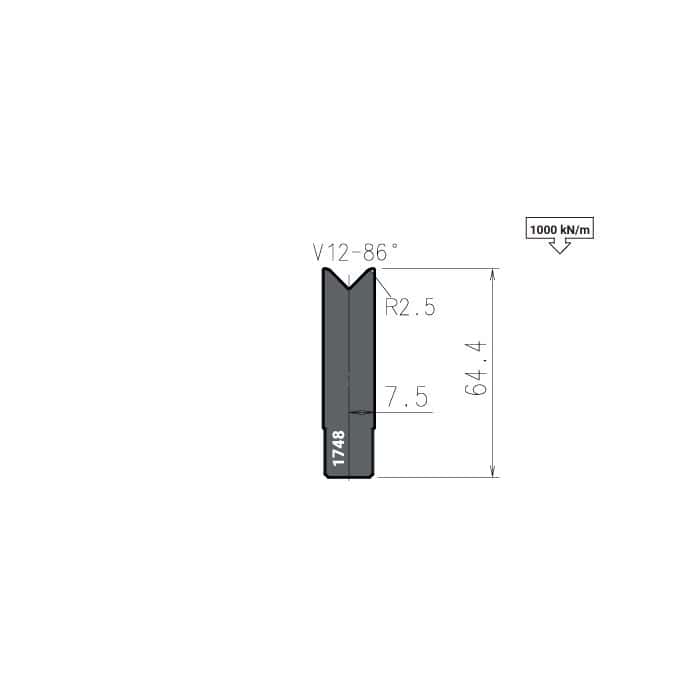

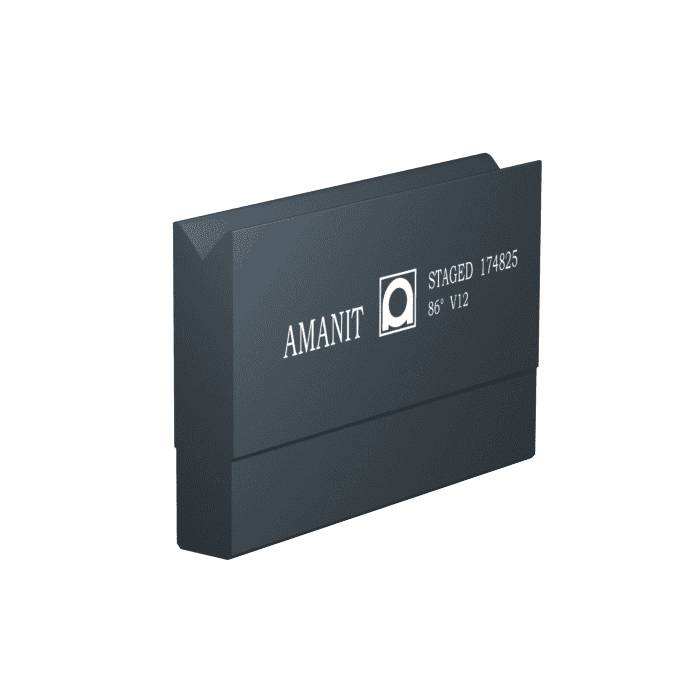

V12 86°
- Max Length: 1670mm
- MaxTonnage: 100t/m

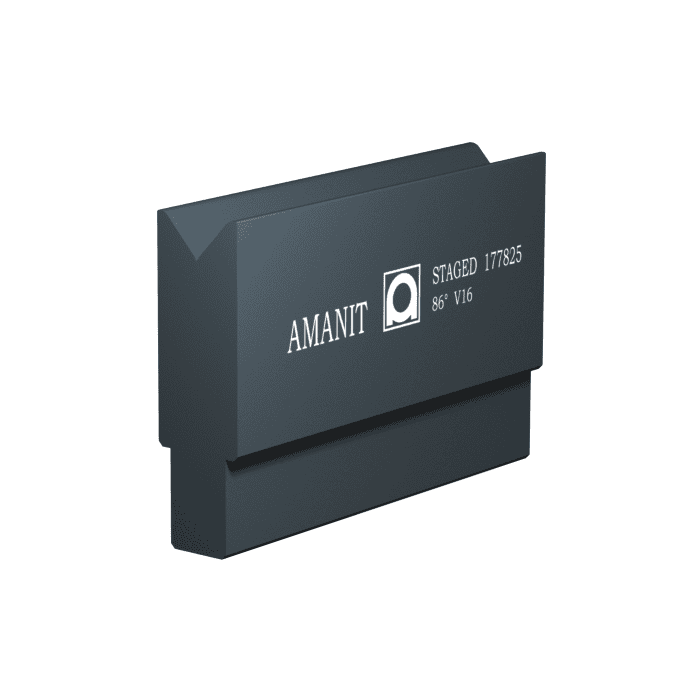

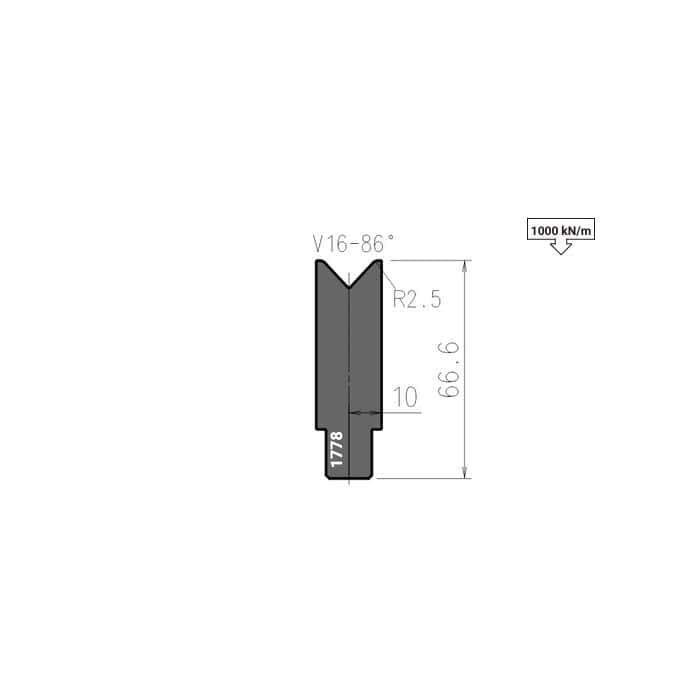

V16 86°
- Max Length: 3000mm
- MaxTonnage: 100t/m

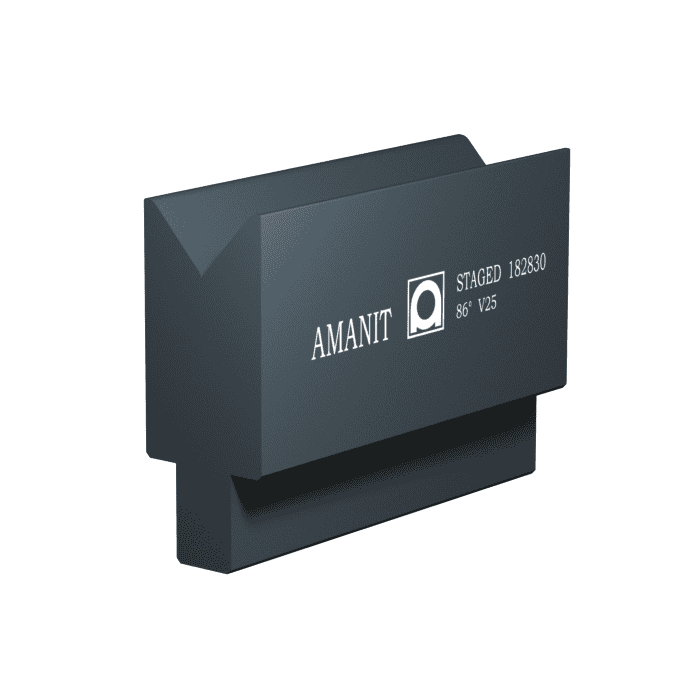

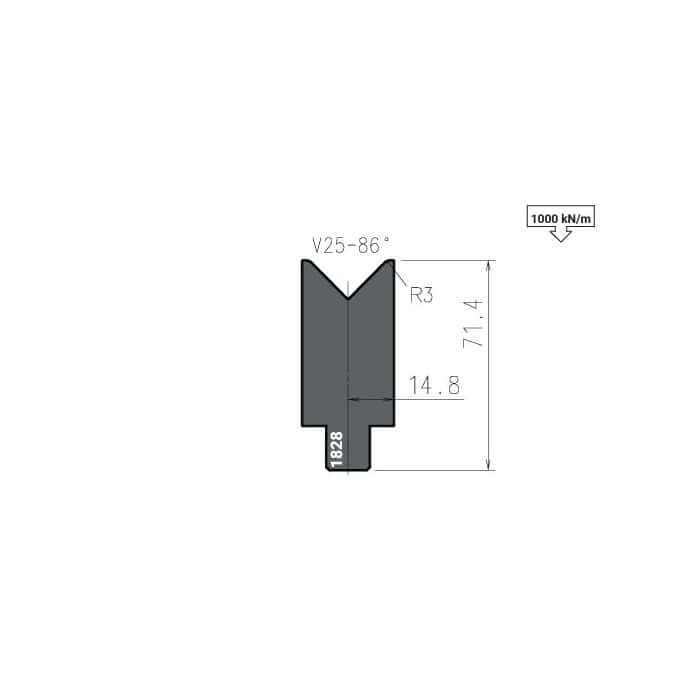

V25 86°
- Max Length: 3000mm
- MaxTonnage: 100t/m

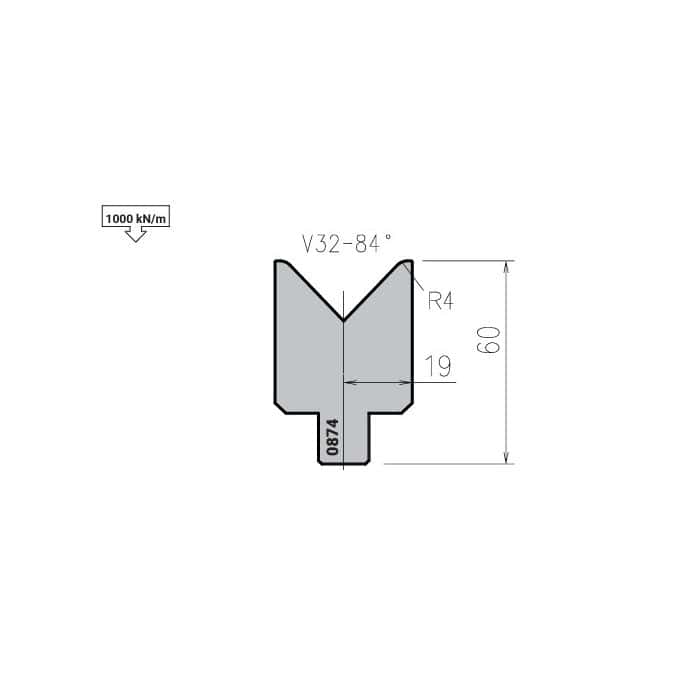

V32 84°
- Max Length: 2500mm
- MaxTonnage: 100t/m

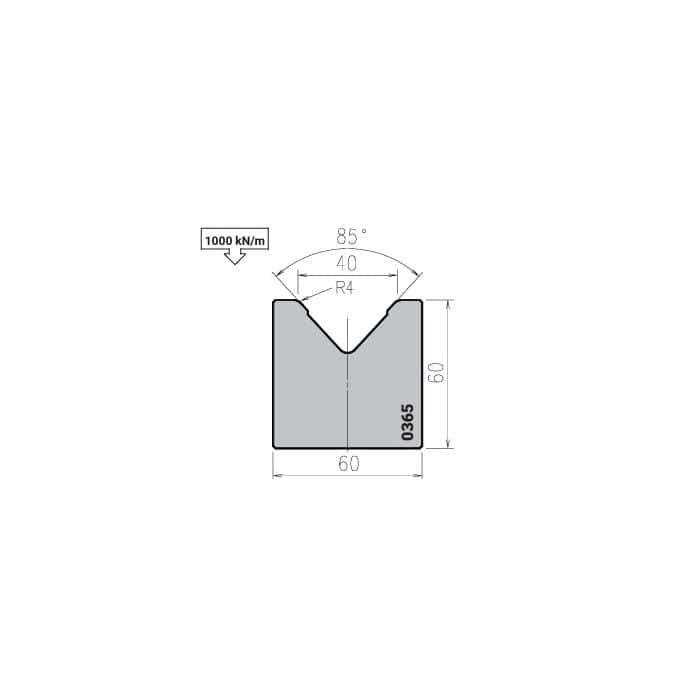

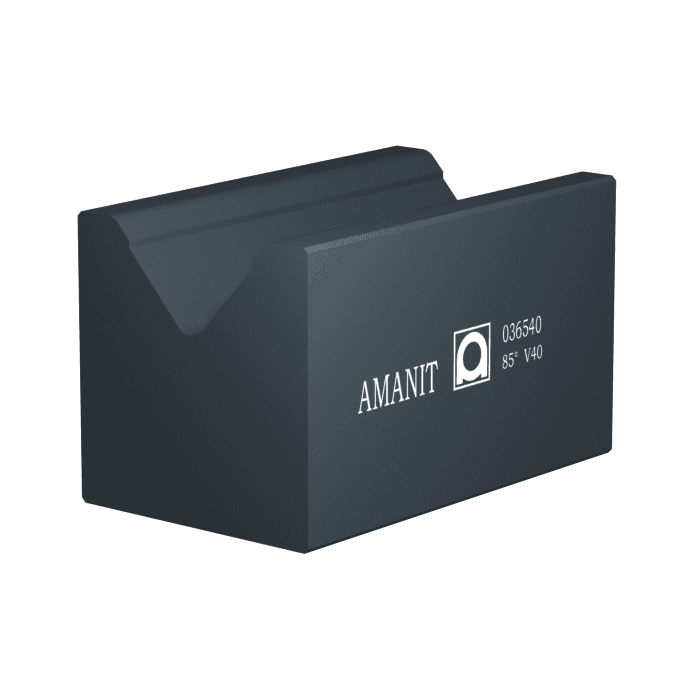

V40 85°
- Max Length: 3000mm
- MaxTonnage: 100t/m

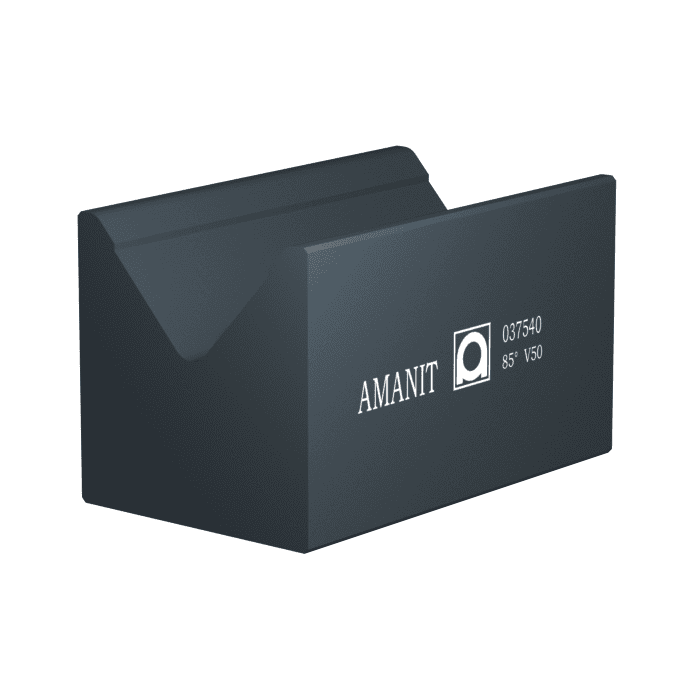

V50 85°
- Max Length: 3000mm
- MaxTonnage: 100t/m

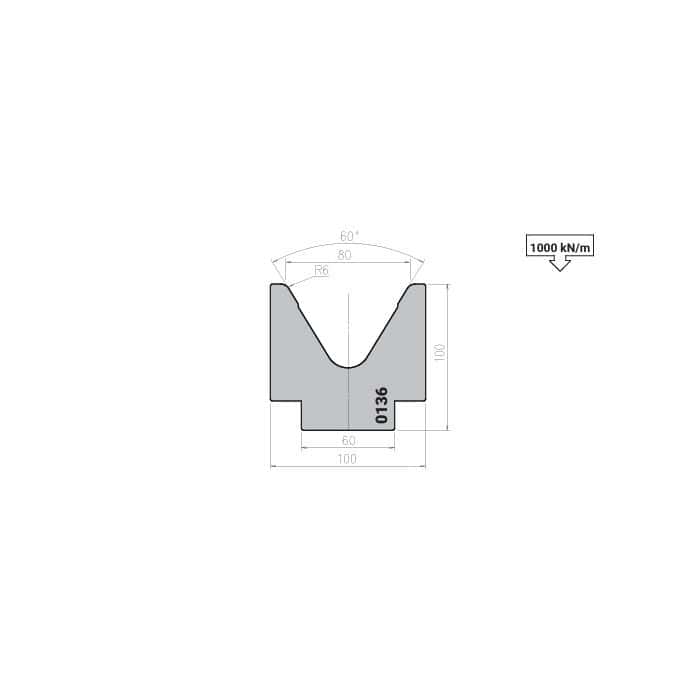

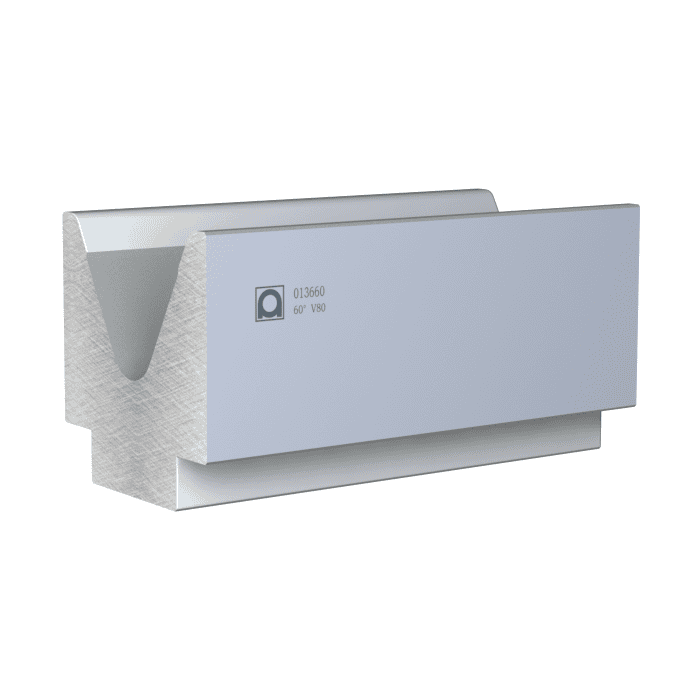

V80 84°
- Max Length: 1250mm
- MaxTonnage: 100t/m

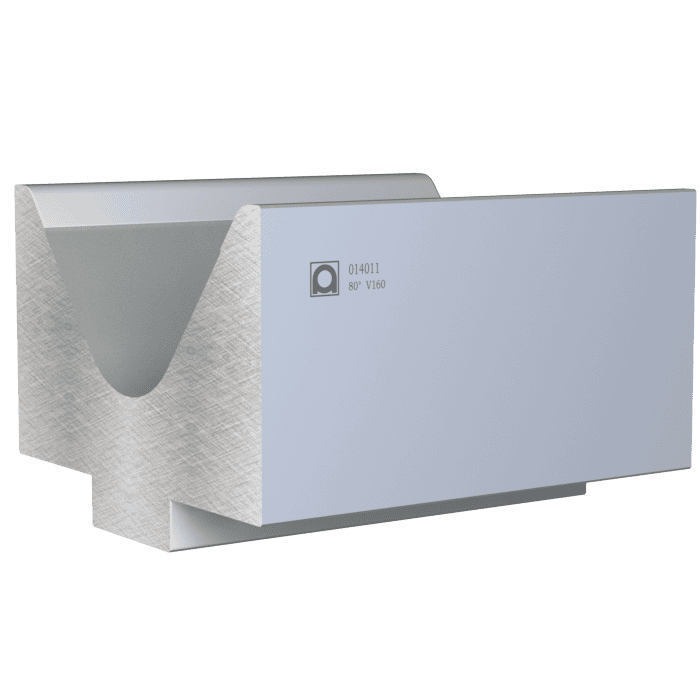

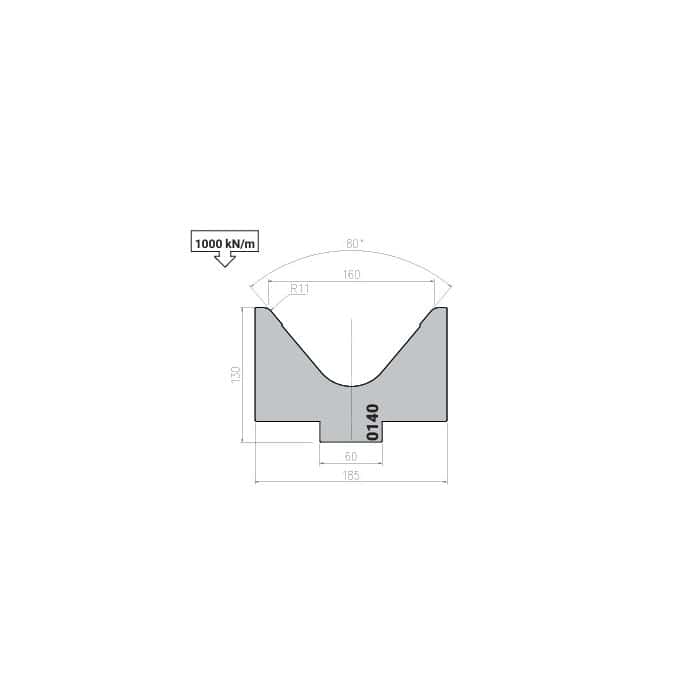

V160 80°
- Max Length: 800mm
- MaxTonnage: 100t/m
Accute Tooling Selection

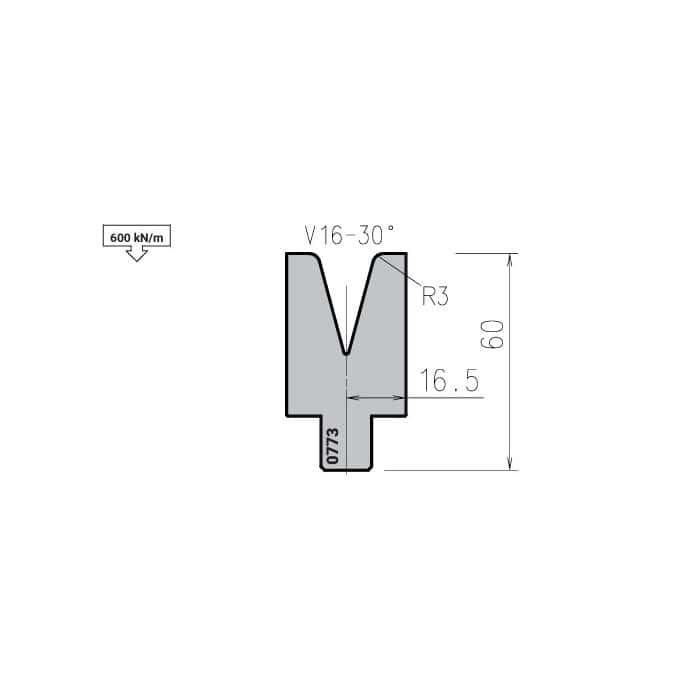

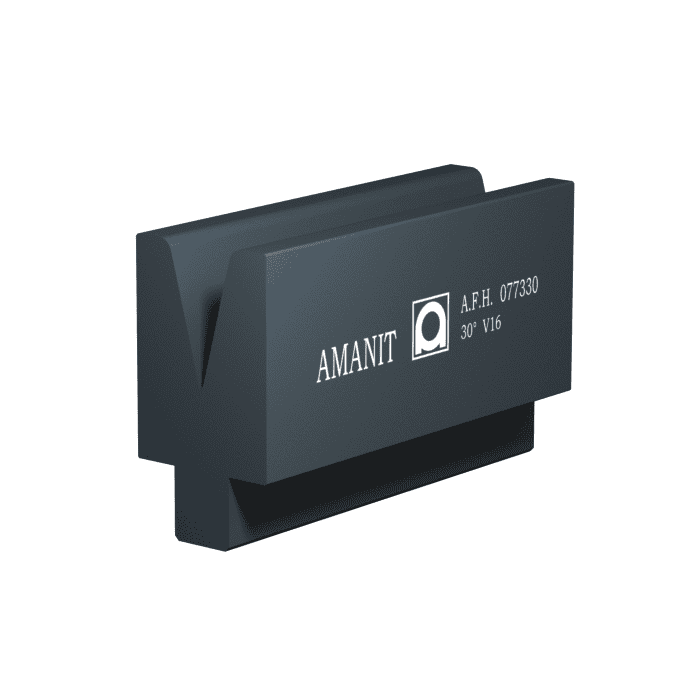

V16 30°
- Max Length: 2500mm
- MaxTonnage: 60t/m

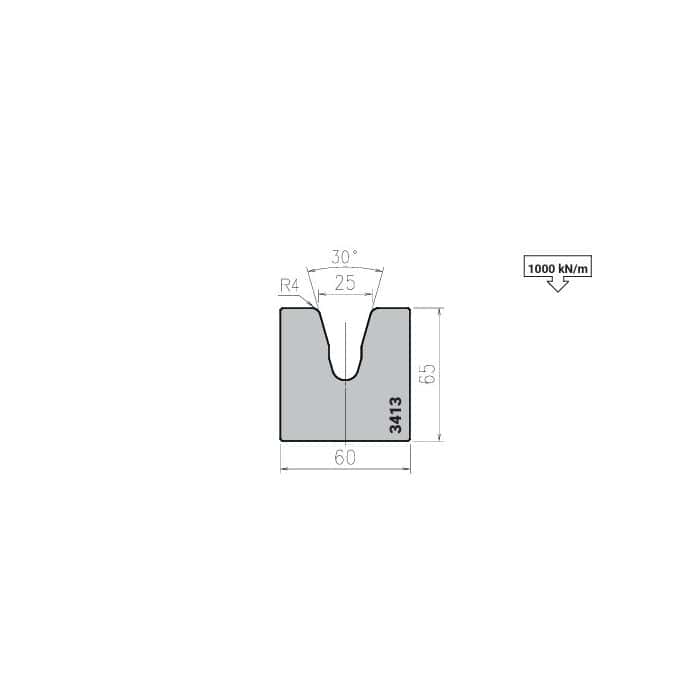

V25 30°
- Max Length: 2500mm
- MaxTonnage: 100t/m

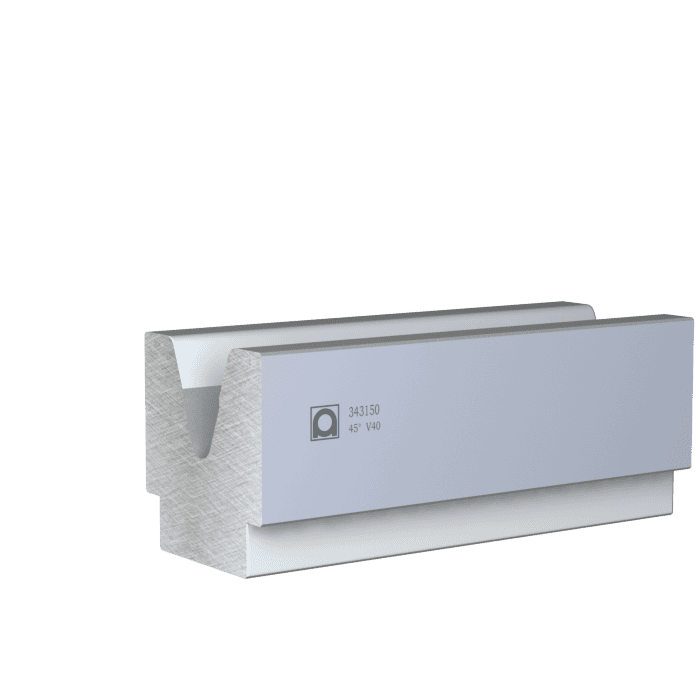

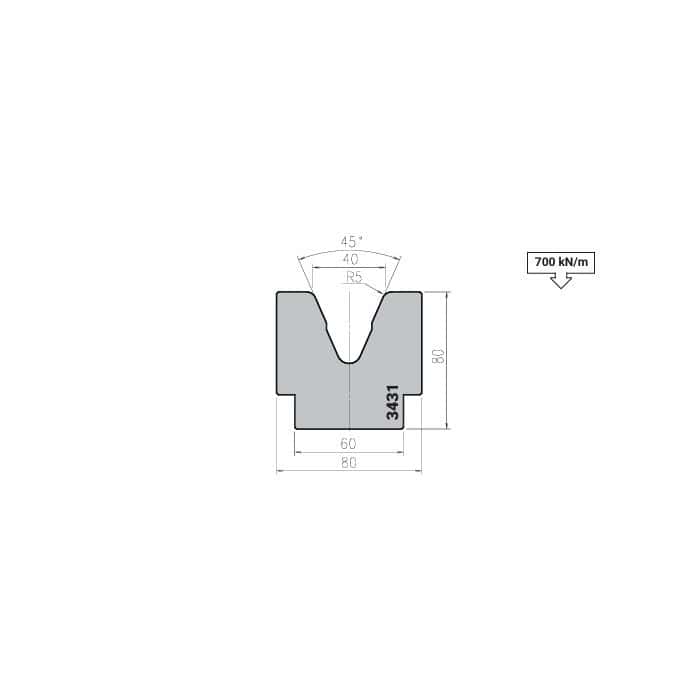

V40 45°
- Max Length: 12500mm
- MaxTonnage: 100t/m

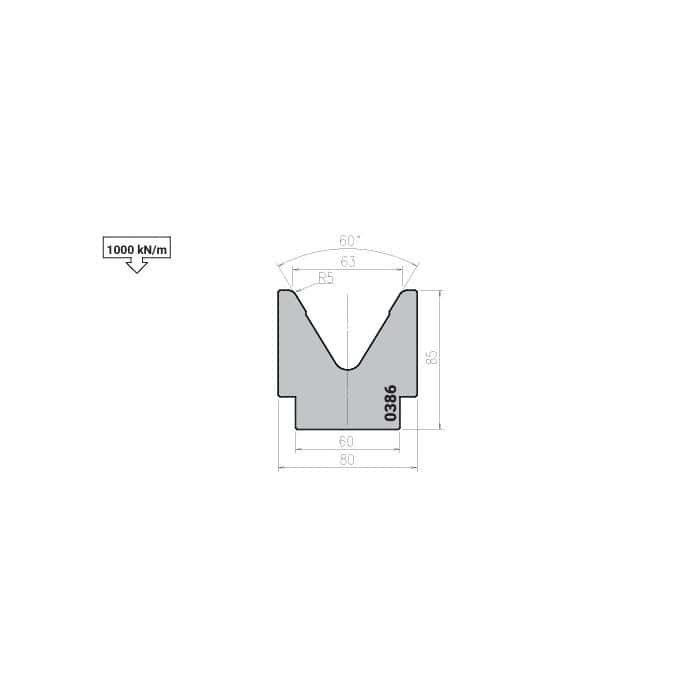

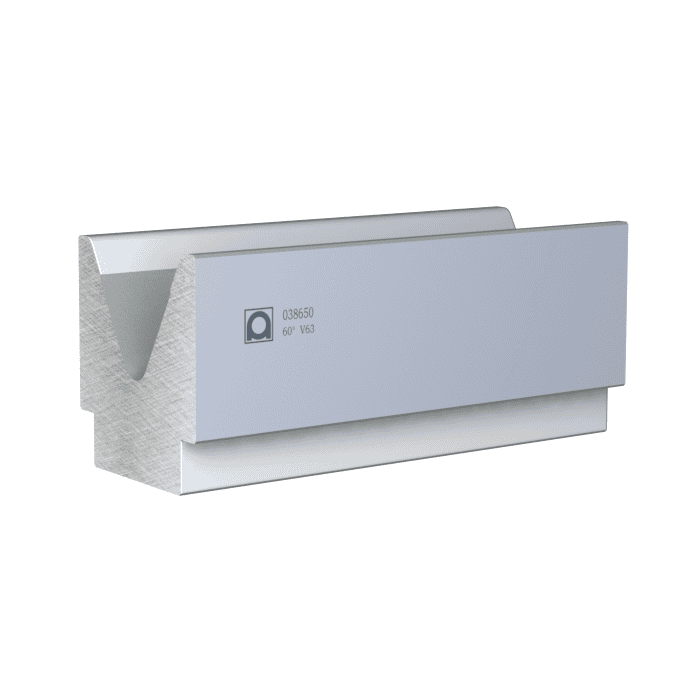

V63 60°
- Max Length: 1670mm
- MaxTonnage: 100t/m

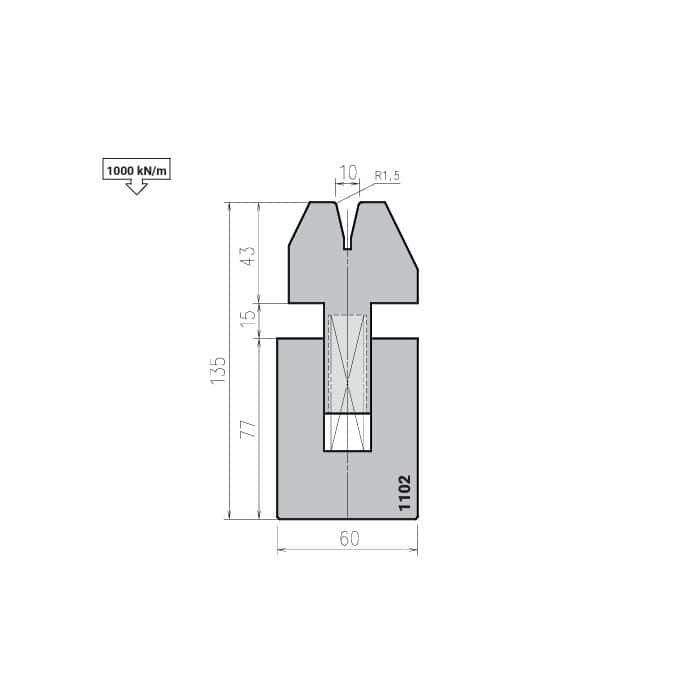

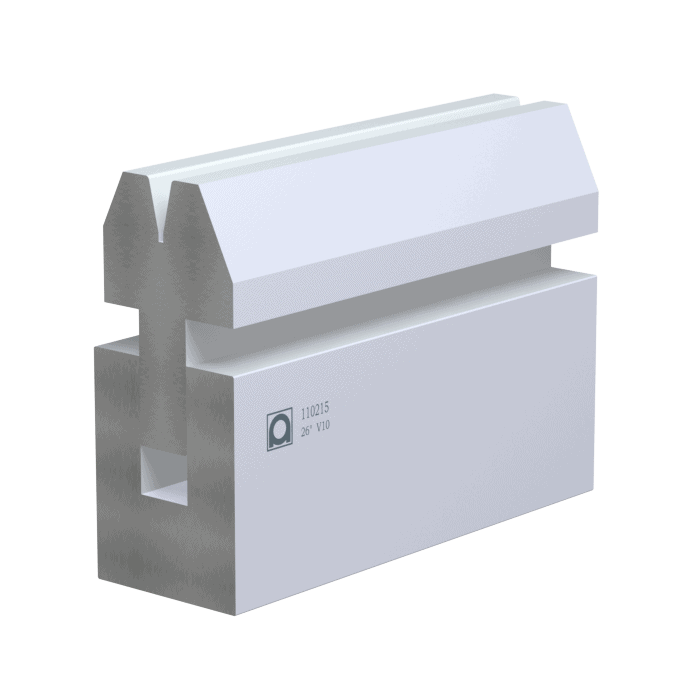

Hemming V10 26°
- Max Length: 2500mm
- MaxTonnage: 100t/m

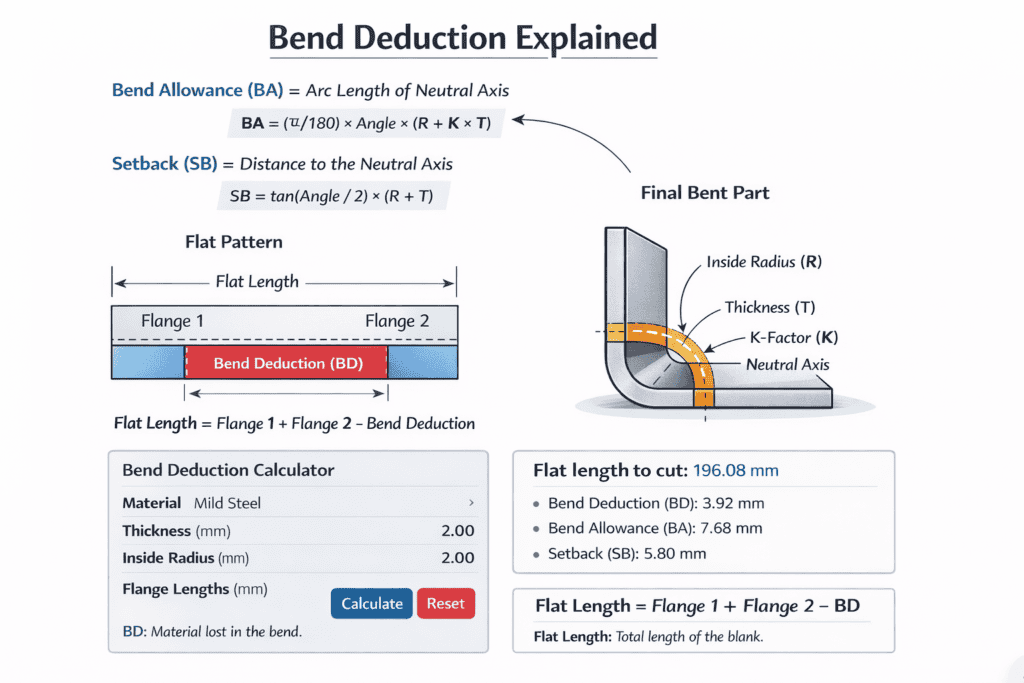

Bend Deduction Calculator
mm only. Quick flat pattern estimate for a single bend (two flanges).
Inputs
Sets the standard K-factor used.
Material thickness.
Inside bend angle (e.g. 90°).
Flange Lengths (mm)
First leg length to tangent point.
Second leg length to tangent point.
*This calculator is provided as a guide only. Actual flat patterns and bend results may vary depending on press brake type,
tooling, die opening, bend method (air, bottom or coining), material batch, grain direction and operator setup. Final
dimensions should always be confirmed by test bending before production.
Results
Flat length to cut
—
Bend Deduction (BD)
—
Bend Allowance (BA)
—
Setback (SB)
—
Calculation Breakdown
- Material: —
- Inside angle: —
- Thickness (T): —
- K-factor (K): —
- Neutral axis radius (K×T): —
